AllWinner A13 Tablets – Custom Android 4.1.1 Jelly Bean ROM
|
The Chinese Android powered tablets are cheaper and offers almost the same user experience and hardware as the high priced devices, they are becoming more and more popular these days and one of the most used platforms is called AllWinner A13.
It’s a single-core mobile system on chip with ARM based Cortex-A8 processor running at 1GHz and Mali 400 GPU (H.264 video encoding support) developed by Allwinner Technology. The A13 tablets are running Android OS 4.0 / 4.0.4 Ice Cream Sandwich pre-loaded and there is almost no official support for them, but here comes the good news – Android 4.1.1 Jelly Bean was successfully ported by toxicro @techknow.t0xic.nl/forum, the ROM is rooted, everything is working and it’s extremely fast!
This ROM is for AllWinner A13 7-inch tablets, there are three models currently available on the market – A13B / A13-B, A13A / A13-A and A13F7 / A13-F7, it should be noted that all of them are available in different colors and under different brands!

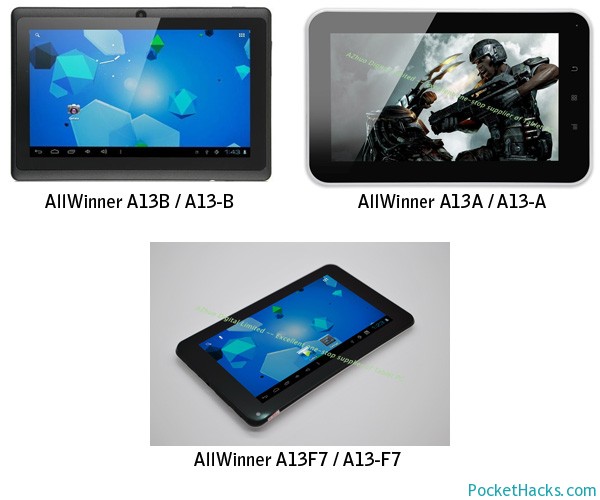

Identify your AllWinner A13 tablet from the picture below:
Warning! Back-up your stock ROM before flashing!
>>> Download the ROM + flash and back-up instructions -click here. <<<
thanks man much appreciated i will try it on my soft bricked a13
Just be careful with the touchscreen drivers, as you need to find the right ones for your tablet!
Hola, he descargado los drivers desde la descripcion de este video:
http://www.youtube.com/watch?v=4LjXLKHtYhc
como hago para instalarlos, he instalado este ROM pero no tengo touch.
gracias ante todo!.
how can i install touchscreen driver and where i have to extract those file?
WHICH DIRECTORY I HAVE TO EXTRACT TOUCH SCREEN DRIVER
Hey i was wondering if this rom works with other brand A13 processor tablets?
1. Flash the ROM with Livesuit
2. Wait for tablet to boot and load
3. Connect your tablet to PC, don’t run adb
4. Extract all content from the touchscreen drivers archive to the directory where you have adb
5. Run as administrator – run.bat
6. After, press any key to reboot the tablet
Check out the latest multi touchscreen drivers:
– ft5x_ts, goodix_ts, gslX680, nt11003+mxc32x0
– ft5x_ts, ssd253x-ts, gt811_ts, sitronix_i2c_touch+dmard06+mma7660
– ft5x_ts, goodix_touch, ssd253x-ts, zet622x, byd693x-ts, gt82x, gt811, pixcir_cxx, gslx680, st1536_ts, elan_ts+mxc622x
Download:
http://www.4shared.com/rar/VsYE4AN6/Eiji-v1.html
http://www.4shared.com/rar/lMWpuvKH/Amith.html
http://www.4shared.com/rar/Qae35K0B/SolomonSam-v1.html
Thanks
What about 9 inch freelander pd60
Anyway to make it work
I am very happy by the news
Does this rom work with freelander pd60 or mapan mx 913 or jxd s9100
they are:
A13 all winner cortex A-8 GPU 400 Mali 8 gig nand flash and 1.2 cpu
Hello again,
I had the post but it seems that It has been removed.
I asked about the possiblity of working this rom on the jxd s9100 or freelander pd60 or mapan mx913. As you know all of these three devices are similar and you could use the same rom for all of them. It is the f900 rom.
By the looks of it, it should work.
Please give a expanded reply.
Is it possible? If not what should I do to make it compatible.
Truly yours & thank you very much
Ps, that is very important work, nice job and keep going!
Some tablets use the init.sun5i.rc file by writing it into the bootloader,
First time you falsh FaaastJB it will work with a PC mouse if your TS is incorrect – allowing you to at least check root, lsmod and get info from Terminal Emulator, Logcats on bugs)
The Multi touch driver(s) may flash, reboot and work… however on shut down / flat battery the TS will revert back to the TS from the first boot – forced by the bootloaders instructions, and “forgetting” your working configuration. Drivers wont install again at times, it goes through abd cmd, says it writes, re-boots and nothing.
Basically means it would need a custom ROM specially compiled by Toxicro with the “EXACT touch drivers” inserted from a copy of your Original Firmware Dump. There are lots built for certain tablets – freely and generously compiled by Toxicro in his own time (Thanks Dude) – Before flashing please be aware of the dangers of not having a backup image of your Device – 2 tabs may look identical but run different software / drivers / partitions etc )
http://www.techknow.me/forum/index.php?topic=3366.0 Official Techknow HcH forums [ROM DUMP TOOL]
A13 / A10 / WM8850 Analyzer Tool – http://www.techknow.me/forum/index.php?topic=5524.0
Features v1.0:
* Wireless Uberizer / ADB control panel
* LogCat viewer (plus write log to SD function)
* Error LogCat viewer (plus write log to SD function)
* Root Check
* BusyBox Check
* Analyser
* WM Analyser
* Remount FS RW
* IP Config
Please goto http://www.techknow.me/forum/index.php?board=130.0
And read the instructions and advice clearly ~ THEN ~ enjoy 4.1.1 on your cheap Tab – Try the Uberizer (copyright HcH) Brilliant backup/restore modding utility.
Thanks Glitch_Neo (Neal)
**((Its Very Important to Backup – Or have a factory Img for your Device))**
**((Its Very Important to Backup – Or have a factory Img for your Device))**
Hey guys bought one of these tablet and thought i would put this rom on it. But it didn’t come with 4.0.4 it actually came with 4.1.1 but i still want this rom on it but how do i root the 4.1.1.
Please answer fast.
Thanks in advance.
The download link is broken??
which ts driver do I use on a a13.
my touchscreen has not been working.
hey why arent u replying to any of us asking how to do touch fix?!i just flashed my tab and thought it would be straightforward but u wont even tell us how!seriously i can hold you accountable for damage to my tablet;and dont just ignore me- coz if u do i’ll make people steer clear of ur website!!!
Hi alfred, first of all – the ROM is not created by me! All the instructions about the touchscreen drivers (including the drivers) can be found here, you need to be registered – http://www.techknow.me/forum/index.php?topic=4595.0
hello I can install touch screen drivers on my tablet
plz email me how to install it on my tablet
sorry my email is shayan4shayan@gmail.com
All the instructions about the touchscreen drivers (including the drivers) can be found here, you need to be registered – http://www.techknow.me/forum/index.php?topic=4595.0
Pls i need you to clearify me. The instruction i got on techknow isn’t direct. What do you mean by ‘the directory where you have adb’. “don’t run adb’. Also my pc says ‘usb device not recognised’ when i connect my tablet to the pc while the tablet is on. But if i power the tablet of and hold down vol+ and power for 5sec, insert the usb while still holding power+vol, the pc connects to it but i can’t use debugging. Pls can you be more direct as to teaching me like a learner that i am. I don’t realy understand the steps on the forum. Help me pls. My touch screen has to work by all means.
Have you already fix your TS ? i got A13 too, same problem here Mate.
lsmod via adb shell or terminal emulator , u 'll see that TS driver using your tablet , if u are owner goodix 820….. don't waste your time…
if my tablet works porperly, I'll certainly buy a box of bier.
You need to find and install the right drivers for your touchscreen, the ROM is really fast and stable 🙂
I just got a chinese a13 tablet with 4.0.4, whats the diff between that and 4.1.1? thanx
my Tablet ins't working anymore, it stops at the boot screen!
and I can't reset it from the vol_down and power_button, did someone had the same problem?
Mine is one A13B
hello link notworking can u postnew link? please really want to try it.
Will this work with Yeahpad pillbox7. From the picture I reckon its allwinner a13b
Hi, I have a IB Sleek Duo 7″ Google Android 4.1 4GB Capacitive Multimedia 3G Tablet, Dual Cam. Which roms can i donwload?? I NEED HELP
YEAHPAD PILLBOX7 7.0″ is AllWinner A13 tablet, so this ROM should work on it, try it 🙂
struggling 2 get my 7 inch allwinner a13 model no:j88 touch screen 2 work rite.its like it is a 10 mm out.dunno how to get it right.please help.updated firmware maybe
